WS-1600 Set Includes the following items:






The WS-1600 Base Receiver has the Following Features:

  • Time display (manual setting)
  • 12/24 hour time display
  • Calendar display (weekday, date, month, year)
  • Time alarm function
  • Weather forecasting function with 3 weather icons and weather tendency indicator
  • Outdoor temperature display in °C/ºF
  • Outdoor Humidity display as RH%
  • Max / Min value of outdoor temperature and humidity display with time & date of recording
  • Low/High outdoor temperature and humidity alarm
  • Relative air pressure displayed in hPa or inHg
  • Air pressure tendency indicator for the past 12 hours (bargraph format)
  • LCD contrast selectable
  • Low battery indicator
  • Wind direction displayed in 16 steps
  • Wind speed displayed in km/h, mph or m/s, and Beaufort scale
  • Wind chill displayed in ° C of ° F
  • Max wind speed displayed with time & date of recording
  • High alarm function for wind speed
  • Manual reset of outdoor temperature/ humidity, pressure and windchill data
  • Total rainfall displayed in mm or inch
  • Storm warning alarm
  • Buzzer on/ off selectable
  • Storage of 200 sets of history weather data recorded in 3-hour intervals
  • Wireless transmission at 868 MHz
  • Transmission range up to 100 metres (330 feet)
  • Dimensions:
    165.4 x 30.8 x 141.9 mm
  • Power Consumption:
    3 x AA, 1.5V alkaline batteries
  • Specifications:
    • Outdoor Temperature Range: -40°C to + 59.9 °C
    • Humidity Range: 1% to 99%

The Base Receiver's LCD has many sections:



  Displays time & date with respective alarms




Displays wind direction, wind chill, wind speed, backlight ON/OFF, buzzer ON/OFF, and respective alarms


  Displays outdoor temperature and humidity with respective alarms
  Displays relative pressure, rainfall for 1hour, 24 hours, 1 week, and total rainfall with respective alarms

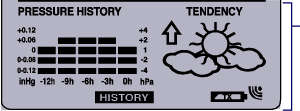

Displays weather forecasting icons with tendency arrows, pressure history graph with respective alarms





Outdoor Thermometer-Hygrometer Transmitter -

  • Measure outdoor temperature and humidity
  • Gather rain/wind data and transmit to display unit through cable or 868 MHz TX
  • Supply DC power to wind sensor and rain sensor
  • Battery operated (2 x AA)
  • 57.3 x 62 x 157 mm

Rain Sensor -

  • Connected by cable to Outdoor Thermo-Hygro Sensor for rainfall data transmission and power source (No separate power supply needed.)
  • Dimensions: 140 x 70 x 137 mm

Wind Sensor -

  • Measure wind speed and wind direction (16 directions possible)
  • Connected by cable to Outdoor Thermo-Hygro Sensor for wind data transmission and power source (No separate power supply needed.)
  • Dimensions: 250 x 164 x 192.7 mm
